Seaguide UL1 uplocking fly reel seats, endcap, one lock ring

Seaguide UL1 (SUL1) uplocking reel seats

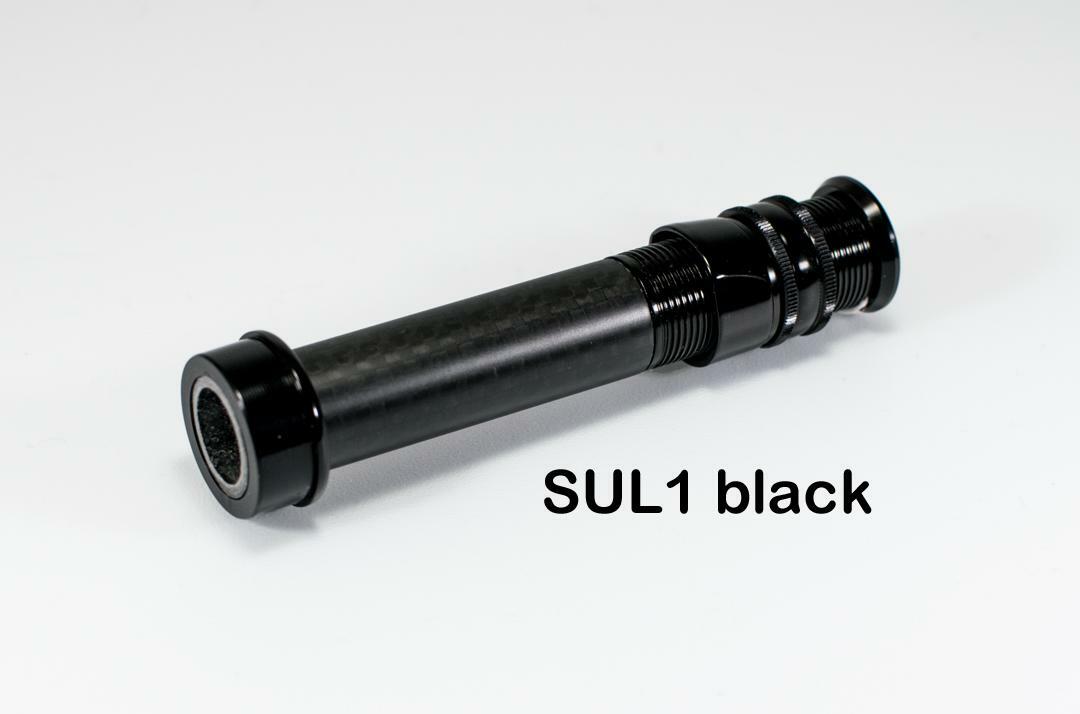

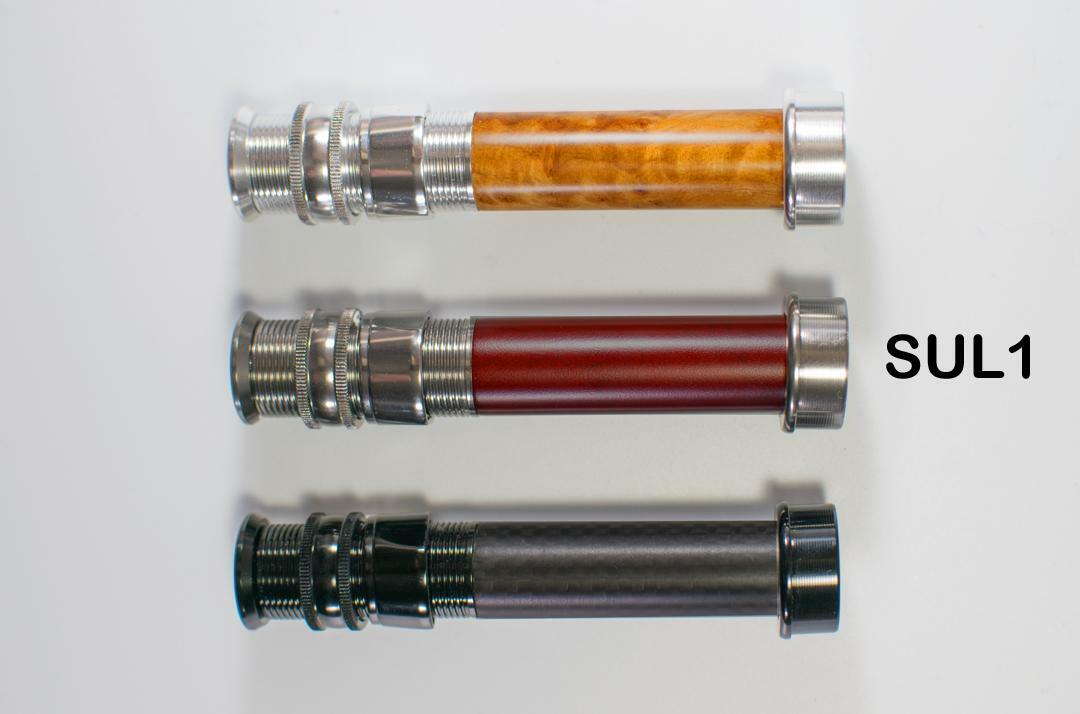

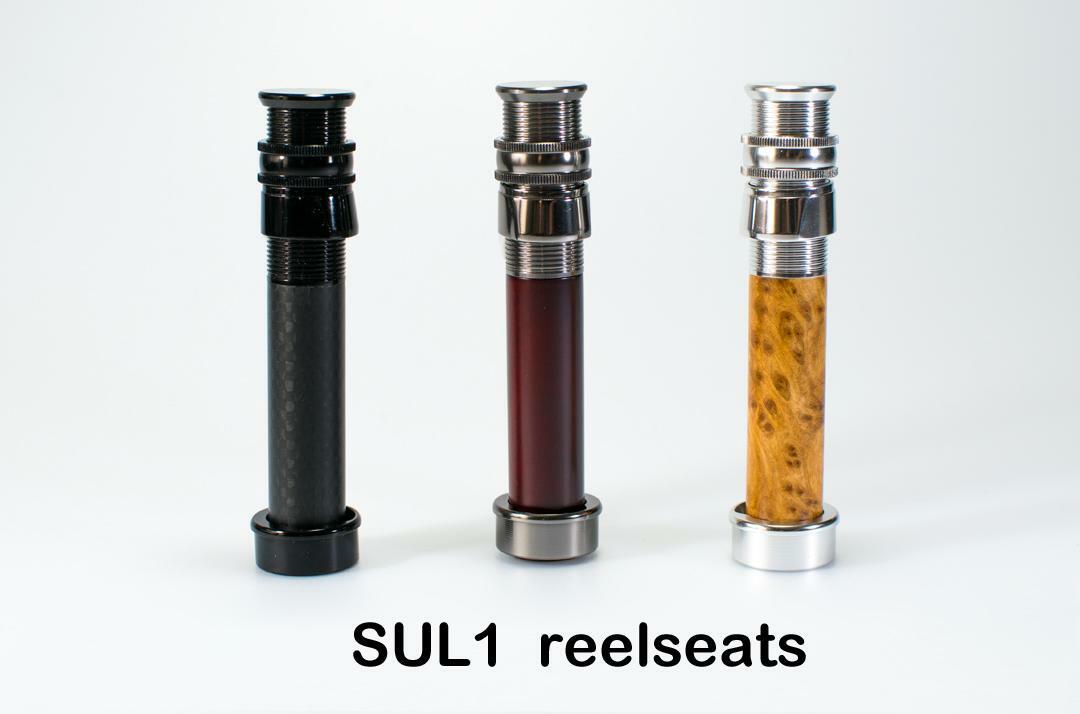

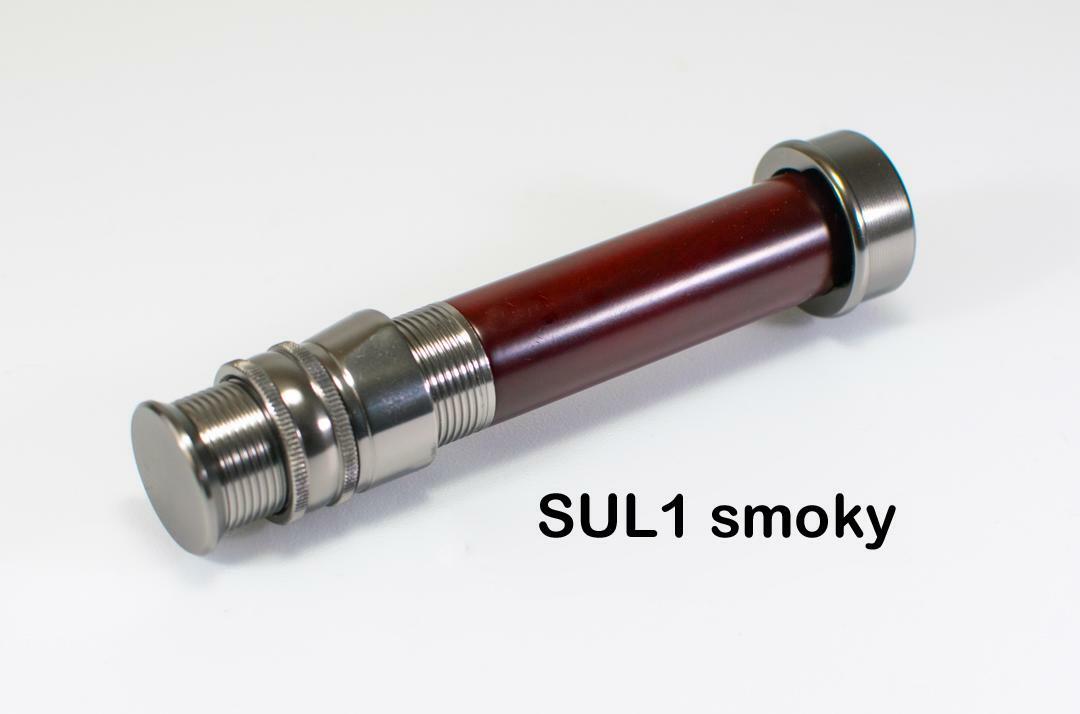

Well-made and good value slim up-locking reel seat in silver, smoky or black anodised finishes, best suits rods #0-#6/7  .  Complete, unassembled Garrison style reel seat supplied with one lock ring, an endcap and an insert of your choice. A fighting butt trim band can be added if required.

See also the heavier duty Seaguide UL2 (SUL2) model for rods rods #5-#9 with two lock rings and optional fighting butt trim band.

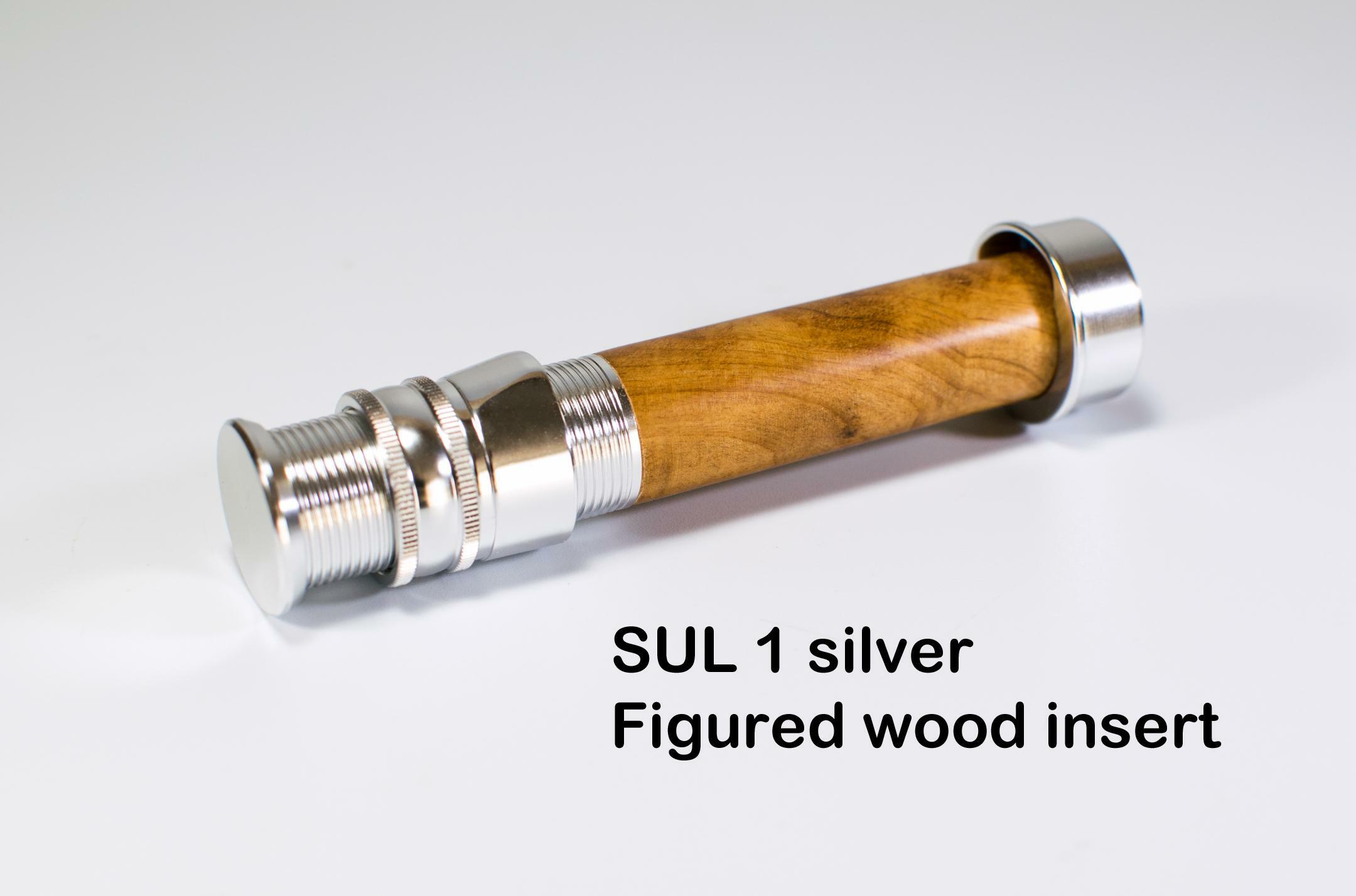

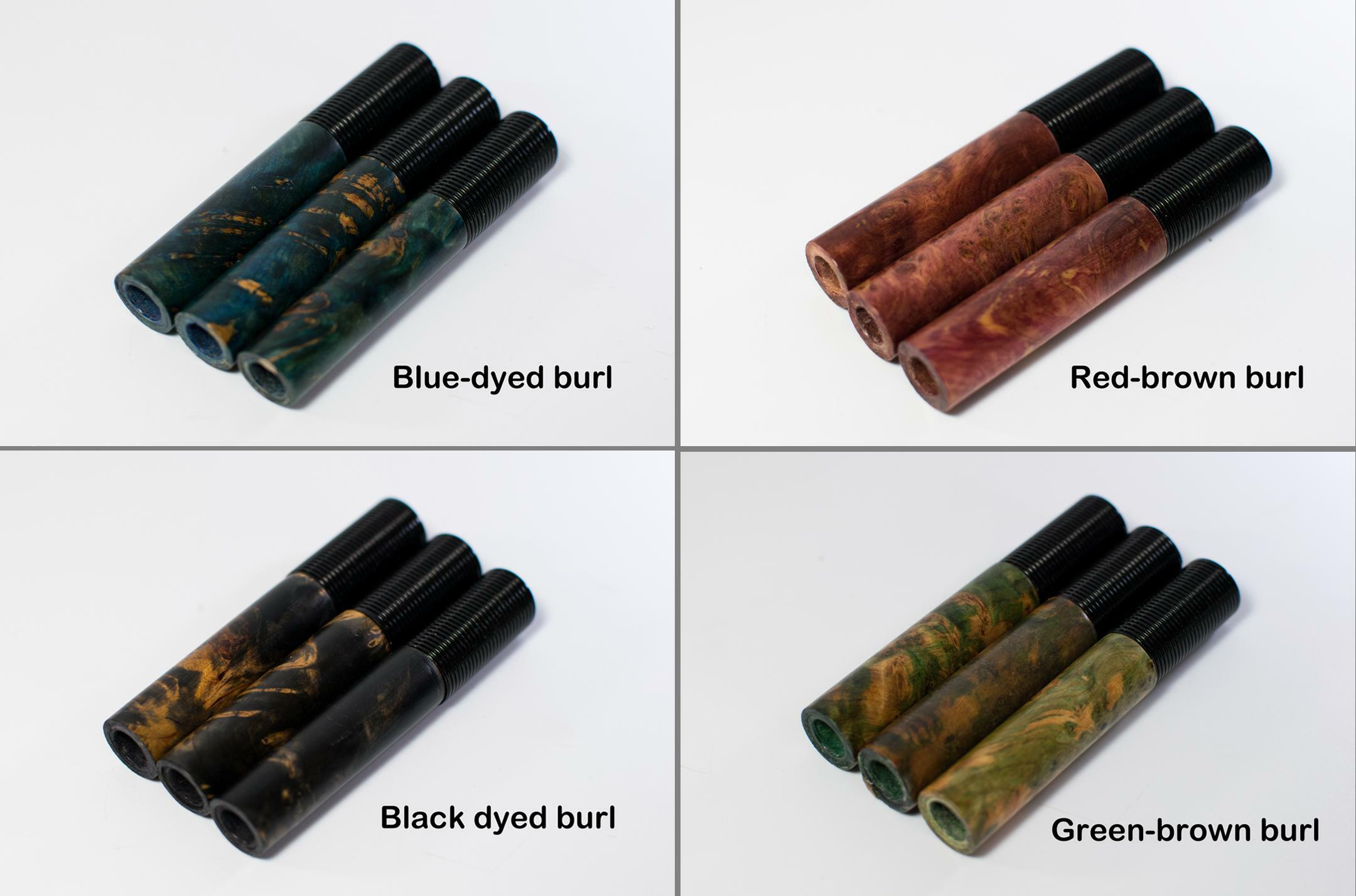

Supplied with an unfitted insert bore 9.5mm.  Select from the options available (matt carbon weave, red Paduak, natural brown straight grain Sandalwood, natural or dyed Sandalwood burl - red, blue, black or green).  We have a few bored out to 10.4mm available for a surcharge, select this option if required.

For blanks larger than 10.4mm butt diameter the seat can be mounted by trimming the butt end of the blank and fitting a spigot or stent of 7-9mm diameter to take the reel seat. (or try a UL6, UL7, UL8 or Classic 'large' seat)  Make sure your spigot will fit the butt of your blank first!

Fitting

Recommended fitting is to glue the reel seat hood into the handle cork recess first, then offer up to the other pre-assembled parts mounted on the blank (or on a spigot if the blank butt is too large for the insert bore).

Dimensions

Full length 99mm including endcap
Visible length 91mm
Depth of hood recess 8mm
Hood diameter 22mm
Insert and threads outer diameter 16.4mm
Skeleton ID: 14mm
Inserts: Bore 9.5mm (optional enlarged 10.4mm bore) , full diameter section 60mm length, tang OD 13.6mm
Metal skeleton weight 16.8g with an endcap (inserts +5g to +10g)
